Model:Hitachi EX220-3,EX220-5 Hydraulic cylinder
Part number:9178283,9144507,9165334
Cylinder No:9101316,9101318,9101315,9147234, 9147231, 9147232
Rod:95MM
Piston:125MM
For:HitachiEX220-5, EX220LC-5, EX230-5, EX230LC-5, EX230H-5, EX230LCH-5
Material:PU+NBR+PTFE
CertifiCATEEion: IOS 9001
Packaging Details: bag or box +carton
Delivery Time:2-5days upon payments confirmed
Brand:Bulldog
Payment Terms:T/T, Western Union, MoneyGram,Paypal,Alipay
Supply Ability:300
MOQ:1set
Parts list
| NO | Part number | Quantity | Part Name |
| | -9159314 | 1 | CYL.;BOOM (R)<For transportation> |
| | 9147231 | 1 | CYL.;BOOM (R)<for assembly of |
| | | | machine> |
| 01-35 | -9159321 | 1 | * CYL. (PIPELESS)<for |
| | | | transportation> |
| 01-35 | 9159318 | 1 | * CYL. (PIPELESS) |
| 1 | -9159324 | 1 | ** TUBE;CYL. (WITH BUSHING) |
| 1 | 7032344 | 1 | ** TUBE;CYL. (WITH BUSHING) |
| 01A | 4355875 | 2 | *** BUSHING |
| 3 | 7032347 | 1 | ** ROD;PISTON(WITH BUSHING) |
| 03A | 4355875 | 2 | *** BUSHING |
| 5 | M342280 | 8 | ** BOLT;SOCKET |
| 6 | 4348202 | 1 | ** SEAL;DUST |
| 7 | 4168226 | 1 | ** SEAL |
| 8 | 4253560 | 1 | ** RING |
| 9 | 1023338 | 1 | ** HEAD;CYL. |
| 10 | 4272961 | 1 | ** BUSHING |
| 11 | 4264983 | 1 | ** RING;RETAINING |
| 12 | 4253563 | 1 | ** O-RING |
| 13 | 4369507 | 1 | ** RING;RETAINING |
| 16 | 4371498 | 1 | ** CUSHION |
| 18 | 3050116 | 1 | ** PISTON |
| 19 | 4168234 | 2 | ** RING;TEFLON |
| 20 | 4253562 | 2 | ** RING;WEAR |
| 21 | 4124860 | 1 | ** RING;SEAL |
| 21 | 4375665 | 1 | ** RING;SEAL |
| 23 | 4201806 | 1 | ** SCREW;SET |
| 25 | 3050115 | 1 | ** NUT |
| 35 | J75481 | 1 | ** FITTING;GREASE |
| 128 | 8046949 | 1 | * PIPE |
| 129 | 8046953 | 1 | * PIPE |
| 131 | M341245 | 4 | * BOLT;SOCKET |
| 132 | M341260 | 4 | * BOLT;SOCKET |
| 133 | A811035 | 2 | * O-RING |
| 138 | 3050114 | 1 | * CLAMP |
| 139 | 8063900 | 1 | * CLAMP |
| 143 | J011035 | 2 | * BOLT;SEMS |
| 144 | 4363058 | 1 | * CLAMP;PIPE |
| 145 | J011265 | 1 | * BOLT;SEMS |
| 200 | 9144507 | 1 | KIT;SEAL |
| 200 | 9165334 | 1 | KIT;SEAL |

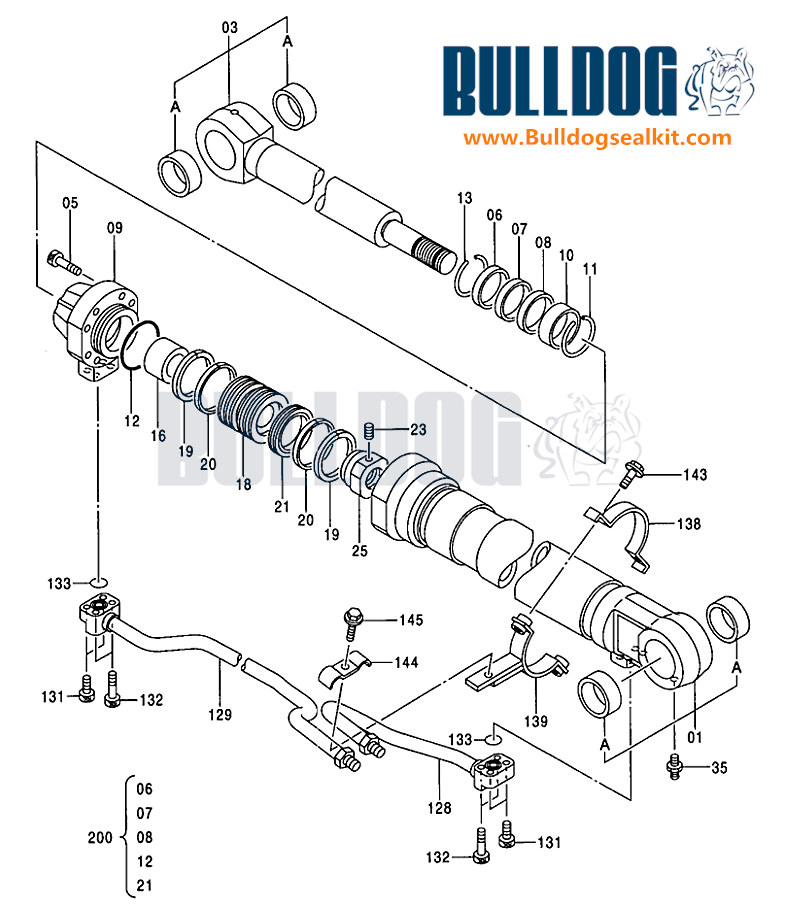

Parts exploded view
Company warehouse
FAQ
1. Q: Are you a manufacturer or trader?
A: We are both in manufacturer and trader, have more than 10 years
of industry experience.
2. Q: Can i make a small order first?
A: Yes, of course.
3. Q: If we let the product make a change of the size, can you offer the
seal kit for this size?
A: Yes, just send the machine model, part number and the change
of size to us, we can make it.
4. Q: Have you support the OEM or not?
A: Sure, we support the OEM,BULLDOG or as required.
5. Q: How can i pay the goods?
A: For the payment, we support the PayPal, Western Union, Money Gram, T/T in advance, L/C at sight, etc
6. Q: How to ship the products?
A: For the shipment, we support the DHL Fedex EMS UPS or by Air/ Sea., if you have the agent in china, we can contact your agent according to your request.
7. Q: What’s the delivery time?
A: The goods can be shipped at 2-5 working days after receiving payment.
|
|
